LAPS-4000 module

AC/DC 4 kW scalable power supply solution for DC and pulsed applications that can be used in serial and/or parallel operation

The low ripple and excellent transient response, together with the features like the safety interlock [PLe] and DC input capability, makes the LAPS-4000 one of the most innovative power supply solution in the market.

Technical Data

ACDC and DCDC Power Supply with safety interlock

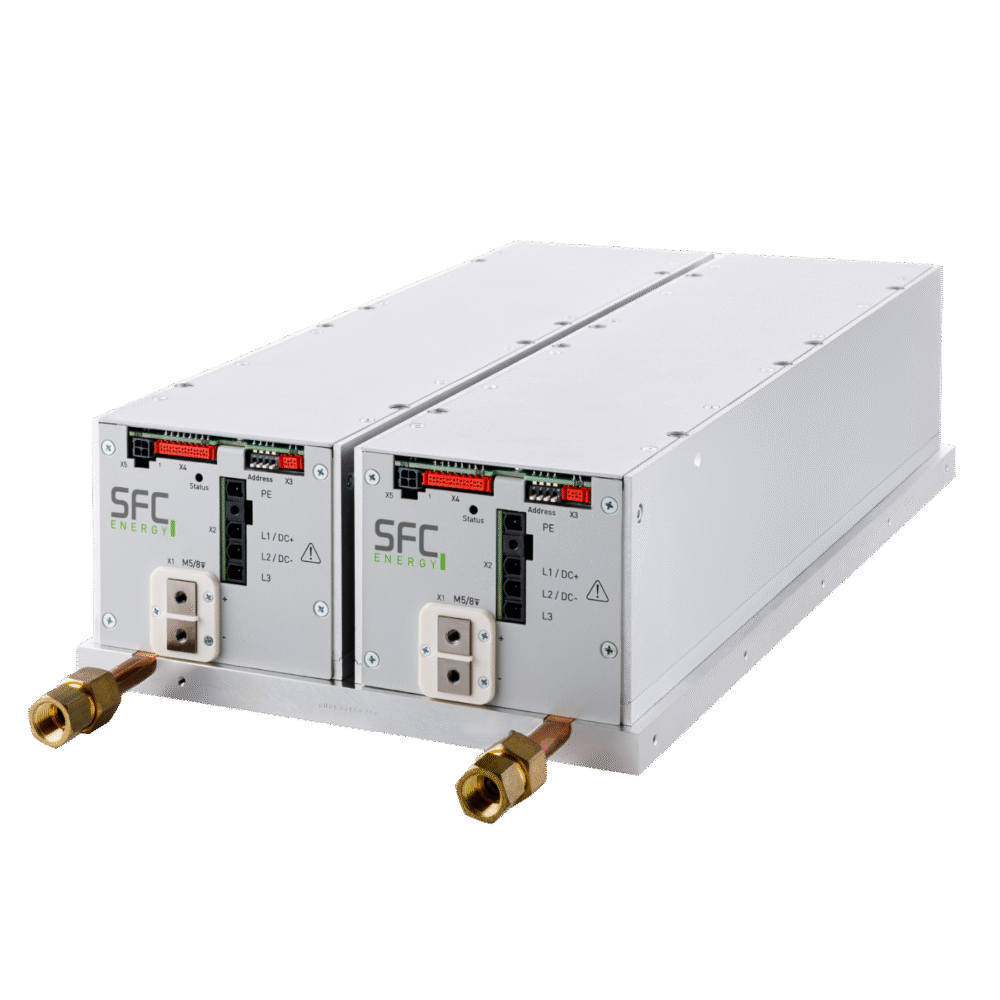

The LAPS-4000 is available with baseplate and can be placed on a liquid cooling plate, and supports universal mains for global use.

LAPS-4000

Brief facts

Key features

Benefits

Safety interlock class PLe
• Double safety interlock
• ISO-13849-1 PLe certified
Very low ripple
Excellent transient response
DC input capability
High power density
Programmable output current and voltage
Fully digital interface
• Galvanic isolated
• Control and monitoring
Modular and scalable
Parallel and/or serial operation
Universal mains, world-wide 3-phase without neutral, no derating
Water cooled baseplate

Guarantees safety
• Improves system uptime
• Reduces total cost of ownership
Suitable for noise sensitive applications
Ideal for pulsed applications
For battery and UPS applications
Reduces footprint and increases scalability
Adjustable to user’s specifications
Less sensitive for disturbances (robust)
• Enables series operation
• Remote diagnostics and programming
Easily adaptable to changing requirements
Scalable in current and voltage
Global use. No additional mains transformer required
Suitable for dusty environments

Designed for flexibility — also powering:

Fibre, diode en CO₂ lasers
RF generators (Plasma)
Battery testing
Fuel cell testing
Burn in equipment
Electropolishing
Electroplating
Electroforming
Capacitor charging
Industrial processes

Technical data LAPS-4000 module

	LAPS-4000-55	LAPS-4000-90
Input
Voltage AC	180 V - 528 Vac, 3 Phase+ PE, 50/60 Hz, No derating at low line	180 V - 528 Vac, 3 Phase+ PE, 50/60 Hz, No derating at low line
Voltage DC	200 -500 Vdc input capability	200 -500 Vdc input capability
Output
Voltage	9-55 V	15-90 V
Current	0-80 A	0-53 A
Power	4000 W	4000 W
Ripple and noise	<35 mVpp	<70 mVpp
