19” multi-channel fast current driver system

LACS-R system

Modular system that offers flexible configuration options, ranging up to 8 channels

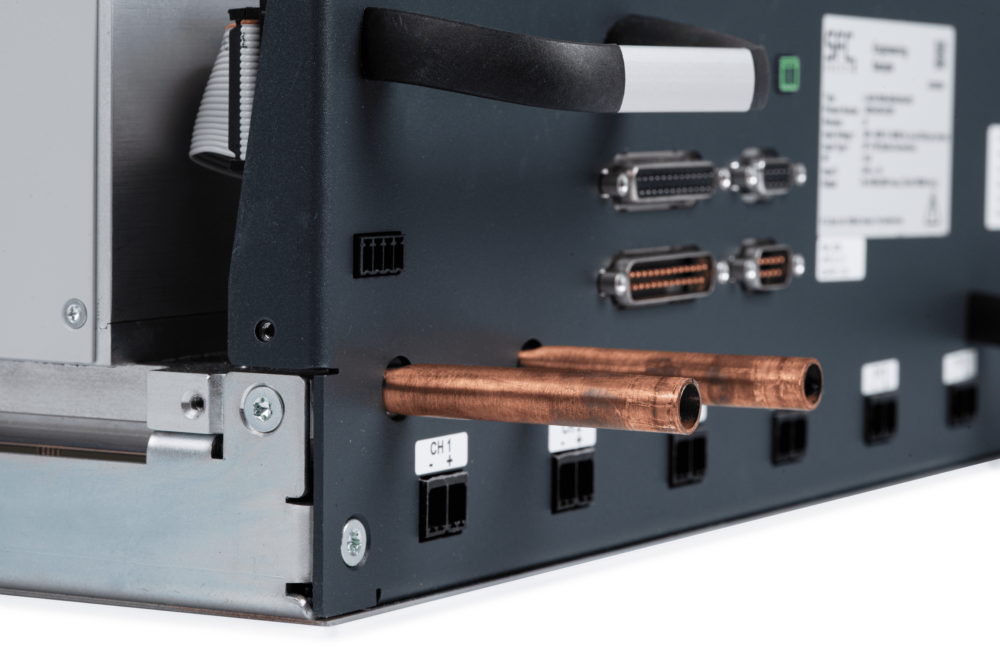

The LACS-R family are liquid cooled 19" multi-channel fast current driver systems which have been specifically engineered for applications in fiber laser and diode bar laser systems.

Technical Data

Cost efficiency solutions for laser systems

The cost efficiency effective solutions are designed for laser systems in the range of 500 W to 5000 W optical power.

LACS-R Brief facts

  • Up to 8 fast current driver channels, parallel use possible
  • Up to 65 V, 35 A, 2.3 kW per channel
  • 3.8 to 19 kW in a 19” 3U
  • Modular and Scalable
  • Fast rise and fall times of <10 µs (programmable)
  • Multi channel driver system
  • Safety interlock class PLe
    • Double safety interlock
    • ISO-13849-1 PLe certified
  • Overshoot compensation
  • Excellent pulse to pulse stability
  • Galvanic isolated interface
  • Analog and/or digital control and monitoring
  • Semi F47

Designed for Lasers, Ready for More

Compatible with a wide range of applications, including:

  • Test and burn in systems
  • Electro Chemical machining (ECM)
  • Plating processes
  • Anodizing
  • Battery cycling/Test benches
  • Fuel cell testing
  • Electropolishing
  • Electrowinning
  • Magnetic coil driving
  • Capacitor charging
  • Defence

LACS-R system

Technical data

Model

Output Power

LACS-3800

3800 W

LACS-7600

7600 W

LACS-11400

11400W

LACS-15200

15200 W

LACS-19000

19000 W
